Kort Lux Home Court Starter: 128k Lumens Pickleball Court Lighting System
Kort Lux Home Court Starter: 128k Lumens Pickleball Court Lighting System
Delivering 128,000 total court lumens, this system utilizes the Lux Ball Wrap technology across all four quadrants of the court to enhance depth perception and ball visibility. The design eliminates front-facing shadows by strategically illuminating the ball’s upper hemisphere, creating high-contrast "pop" for accurate tracking during fast-paced play.
--Shipping May 19th--
Couldn't load pickup availability
Collapsible content
SPECIFICATIONS
Use: Indoor/Outdoor
Lighting Method: LED
Light Color: 6500K Daylight white
Wattage: 100 watts x 8 = 800 watts total
Power Source: 85-305 Volt AC
Surge Protection: Up to 4KV

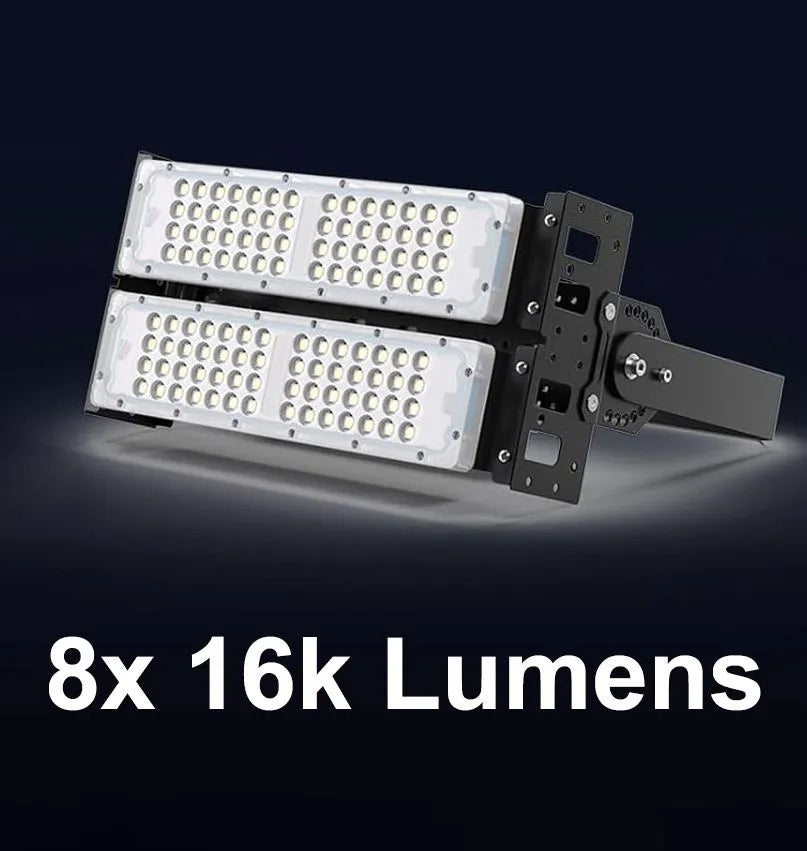

Brightness: 16,000 lumens x 8 = 128,000 Lumens total
Efficiency: 160LM/W (95%+ conversion rate)
LED Housing Type: UL IP66 sealed 1070 aluminum waterproof housing w/ reinforced silicone gaskets
LED Life Expectancy: 50,000 hours
Light Pole Type: 15’ modular light gauge painted steel
Warranty- Pole & Hardware: 1-year warranty
Warranty- LED Module: 5-year warranty
Note on Local Ordinances: Outdoor lighting regulations vary significantly by city and neighborhood. Before purchasing, please consult your local building department or HOA regarding maximum lumen caps and property line light-spill limits. To minimize light trespass and glare, we strongly recommend utilizing our integrated shielding options for courts located in densely populated residential areas.
DETAILS

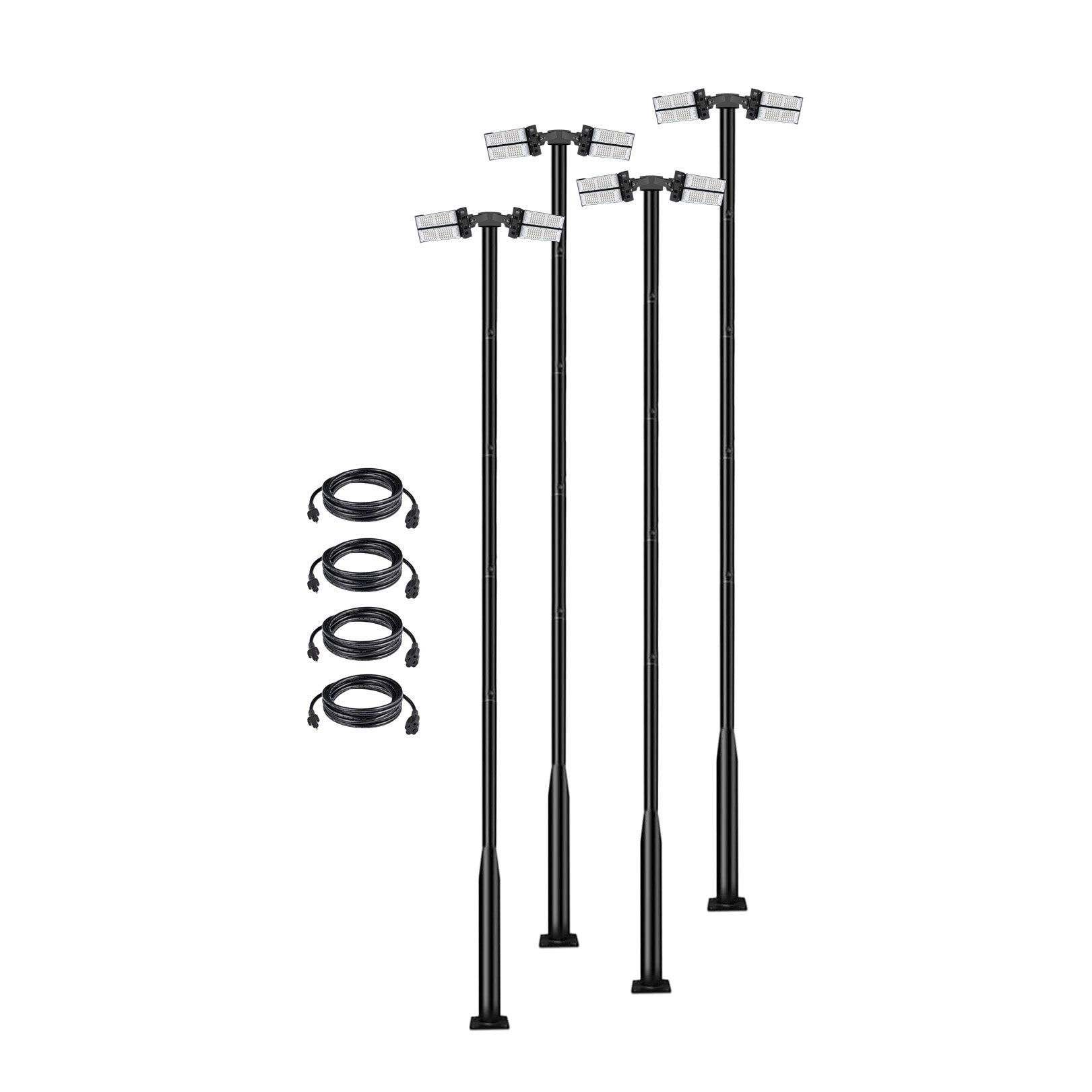

Includes:
- 4x 16’ modular light poles
- 4x dual light brackets
- 8x lights (16x lighting modules)
- 4x power extension harnesses
